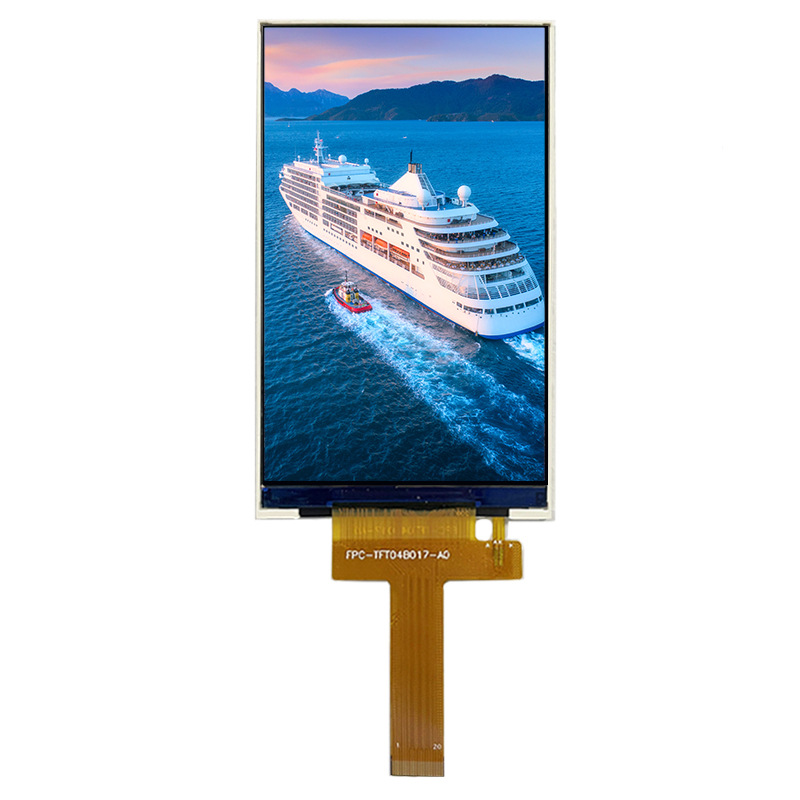

3.5inch tft MIPI interface sunlight visible lcd

3.5inch tft MIPI interface sunlight visible lcd

Size: 3.5-inch sunlight visible LCD screen
Resolution: 480(RGB)*640
Outline size: 60.5 (W) * 83.40 (H) * 2.80 (T) mm
Active Area: 53.568 (W) * 71.424 (H) mm
Operating temperature: – 20 ℃ – + 70 ℃
Storage temperature: – 30 ℃ – + 80 ℃
Display mode: semi transparent and semi reflective, visible in the sun
Backlight mode: LED
Touch (TP): capacitive screen \ resistive touch screen
Interface mode: RGB \ Mipi

3.5inch tft MIPI interface sunlight visible lcd

Fill out this field
Please enter a valid email address.
Fill out this field

Download

Engineering Drawing

Specification

Package Specification

General Specifaction
