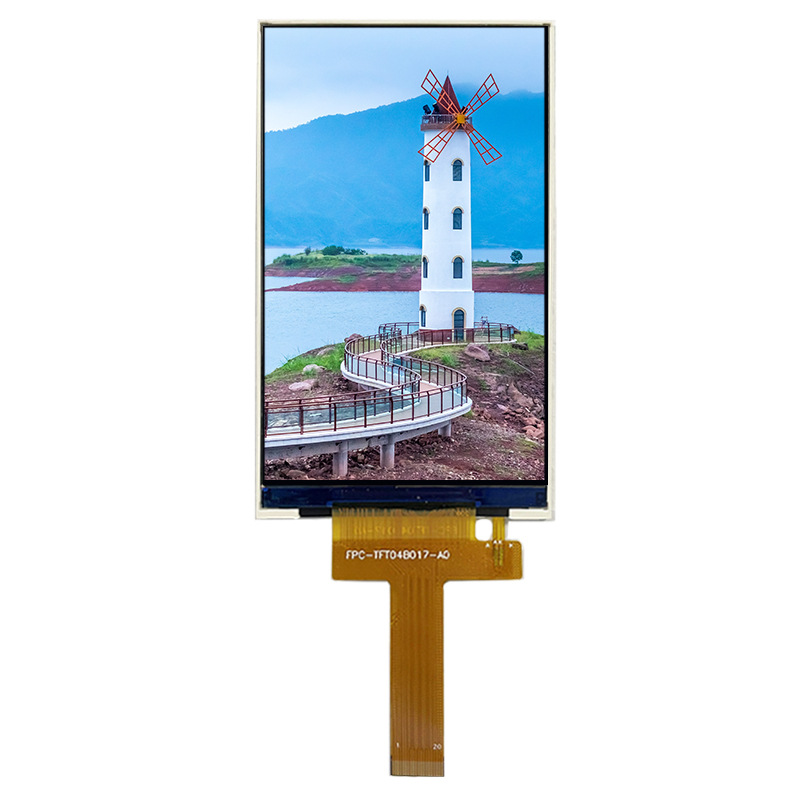

4.0inch OLED display

4.0inch OLED display

Product size: 4.0-inch OLED
Resolution: 360*RGB*640
Outline size: 53.76 mm * 97.16 mm * 2.21 mm
Display area AA size: 49.14 mm * 87.36 mm
Operating temperature: – 20℃ – + 70 ℃
Storage temperature: – 30 ℃ – + 80 ℃
Display mode: full color, full view angle
Connection method: connector
Module brightness: 640 CD / m2
Touch screen (TP): capacitive touch screen
Interface mode: MIPI

4.0inch OLED display

Fill out this field
Please enter a valid email address.
Fill out this field

Download

Engineering Drawing

Specification

Package Specification

General Specifaction
