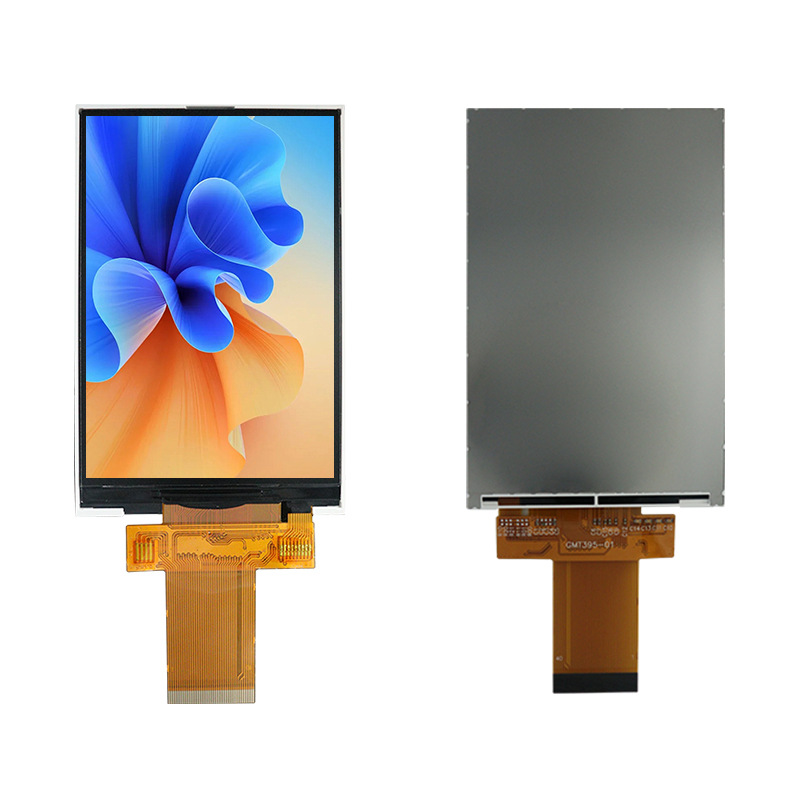

3.5inch sunlight readble lcd module

3.5inch sunlight readable lcd module

Product size: 3.5-inch sunlight visible LCD screen
Resolution: 480*(RGB)*640
Overall dimension of module: 60.5 (W) * 83.40 (H) * 2.80 (T) mm
Size of display area AA: 53.568 (W) * 71.424 (H) mm
Operating temperature: – 20 ℃ – + 70 ℃
Storage temperature: – 30 ℃ – + 80 ℃
Display mode: Semi transparent & semi reflective, visible in the sunlight
Connection mode: plug \ connector
Driver chip: hx8363-b
Backlight mode: LED
Touch (TP): capacitive screen \ resistive touch screen
Interface mode: RGB \ Mipi
